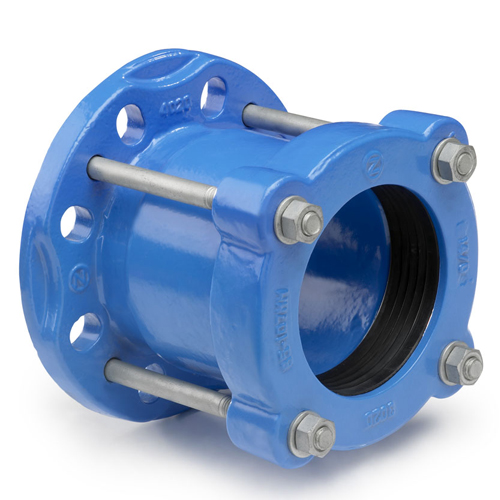

Hegawa Plus Range products have an outside diameter range of up to 34 mm. This means within every nominal size nearly all outside pipe diameters can be joined, whether in steel, ductile iron, cast iron, asbestos cement, PVC or almost any other rigid pipe material.
Features
Working pressures up to 16 bars.
Angular deflection 6° for couplings.
DIN, BS and ANSI in one flange design.
Material Specification
Locking rings: ductile iron EN-GJS-500 to DN EN 1563.
Body: ductile iron EN-GJS-500 to DN EN 1563.
Gasket: EPDM to BS EN 681-1.
Bolts: Steel quality 8.8. to ISO 898-1, Dacromet coated.
Nuts and washers: Steel quality 8.8. to ISO 898-2, Dacromet coated
Coating: Epoxy paint potable resicoat 9000 R4 Blue applied electrostatically with 250 μm to DIN 30677
Rubber gaskets: EPDM. NBR/SBR Rubber is available on request.
