FLEX - Wide Type - 420
MEASUREMENT
Nominal diameter
DN 200 mm – DN 4000 mm
FEATURES
Temperature :
-20° C to +120° C (EPDM) or -20° C to + 80° C (NBR).
Working Pressure :
PN is 16 bar.
In FLEX-L type BORFLEX couplings, the body consists of 2 or 3 (after DN 1800) parts.
They are applied to the pipes in the form of bracelets and by sliding on the pipe
It is optional production.
MATERIALS
Body
AISI 304 Stainless Steel
AISI 316L Stainless Steel
AISI 1024 Galvanized Steel
Gasket
EPDM (Water, Wastewater, Air, solid and chemical products are also used)
NBR (Used in hydrocarbons such as Water, Gas, Oil, Petrol etc.)
Mounting Plate
AISI 304 Stainless Steel
Fasteners
Bolt :
Dacromat 500 Coated Steel
AISI 304 Stainless Steel
AISI 316L Stainless Steel
Miller :
Dacromat 500 Coated Steel
AISI 304 Stainless Steel
AISI 316L Stainless Steel

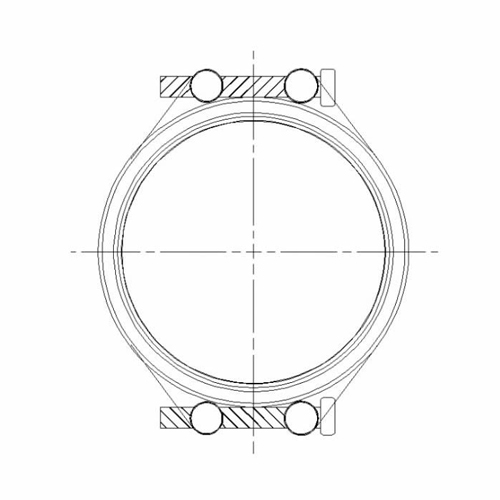

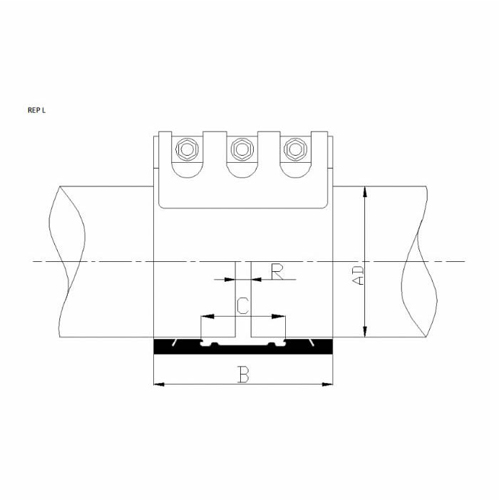

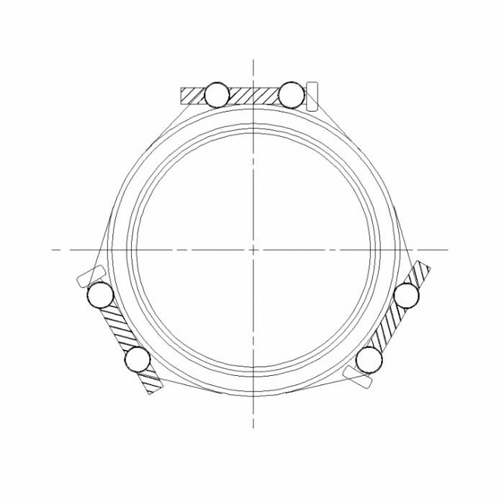

Product Technical Drawing
