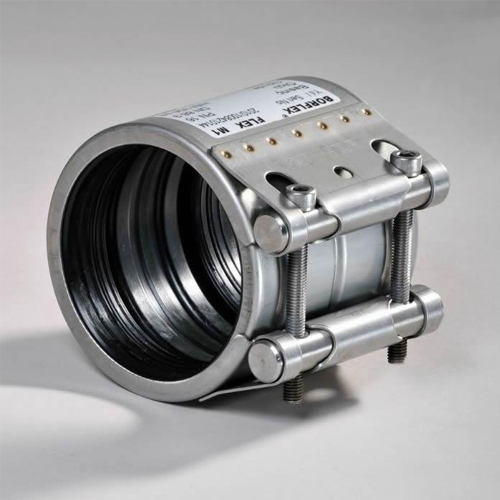

FLEX - MK
MEASUREMENT
Nominal diameter
DN 26.9 mm – DN 180 mm
Usage Areas
MATERIALS
Steel
CTP
HDPE-100
PVC
PIK
Ductile Font
It can be applied to ACU pipe types.
MATERIALS
Body
AISI 304 Stainless Steel
AISI 316L Stainless Steel
AISI 1024 Galvanized Steel
Gasket
EPDM (Water, Wastewater, Air, solid and chemical products are also used)
NBR (Used in hydrocarbons such as Water, Gas, Oil, Petrol etc.)
Vacuum Support Part
AISI 304 Stainless Steel
AISI 316L Stainless Steel
Fasteners
Civata :
Dacromat 500 Coated Steel
AISI 304 Stainless Steel
AISI 316L Stainless Steel
Miller :
Dacromat 500 Coated Steel
AISI 304 Stainless Steel
AISI 316L Stainless Steel
FEATURES
Temperature :
-20° C to +120° C (EPDM) or -20° C to + 80° C (NBR).
Working Pressure :
PN is 16 bar. (According to customer demand, the pressure is increased up to 40 Bar.)
In FLEX-S type BORFLEX couplings, the body and the gasket consist of a single piece in the form of a cylinder.
Clamp sleeves are applied to the pipes in the form of bracelets and by sliding them on the pipe.

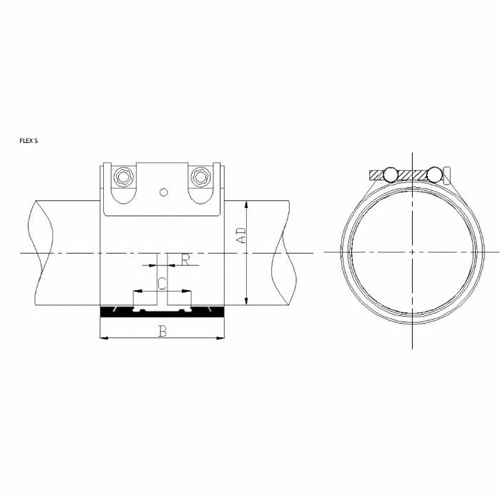

Product Technical Drawing
